PE Filter Bags (Polyethylene)
PE Polyethylene Filter Bags
MejoeFilter PE (Polyethylene) filter bags provide superior chemical compatibility for demanding liquid filtration applications. With a higher temperature tolerance than PP, PE bags are ideal for hot process fluids. Available in No.1 and No.2 standard sizes with three ring construction options.
Key Features
- Material — 100% Polyethylene (PE) felt, excellent resistance to a wide range of chemicals
- Two Standard Sizes — No.1 and No.2 bags to fit standard bag filter housings
- Three Ring Types — PE plastic ring (heat-sealed), galvanized steel ring (sewn), or 304 SS ring (sewn)
- Filtration Precision — 1 to 200 micron ratings available; specify on inquiry
- Compatible — Fits MejoeFilter and standard single-bag and multi-bag filter housings
Specifications
| Specification | No.1 Bag | No.2 Bag |
|---|---|---|
| Diameter | 7" | 7" |
| Length | 17" | 32" |
| Filtration Area | 0.25 m² | 0.5 m² |
| Max. Flow Rate | 20 m³/h | 40 m³/h |
| Max. Temperature | 130°C (266°F) | 130°C (266°F) |
| Micron Rating | 1–200 μm (specify on inquiry) | |
Ring Type Guide

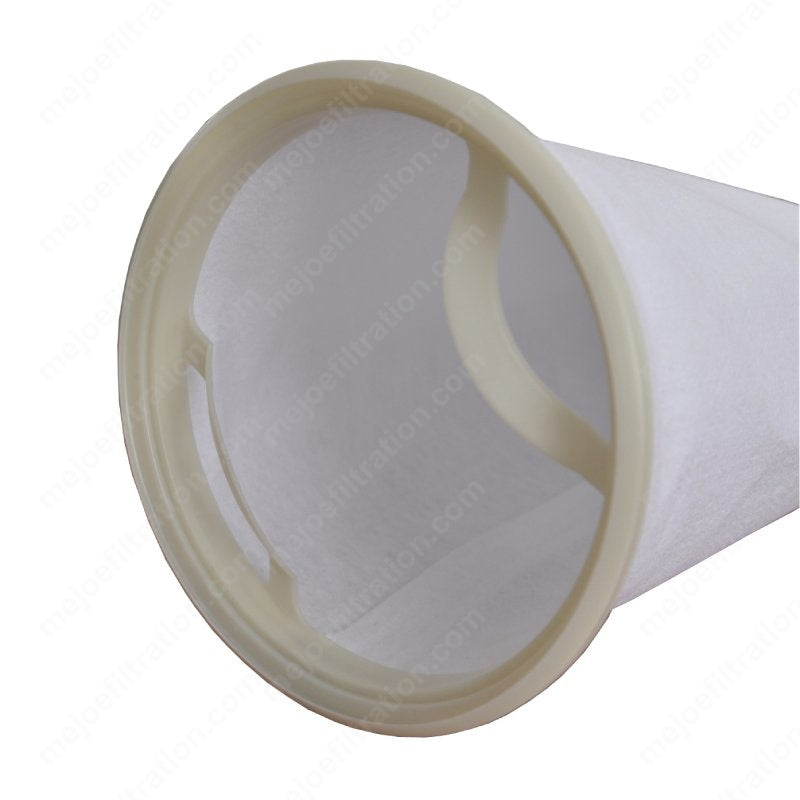

- ER — PE Plastic Ring: Polyethylene ring, heat-sealed bag body, ideal for corrosive media

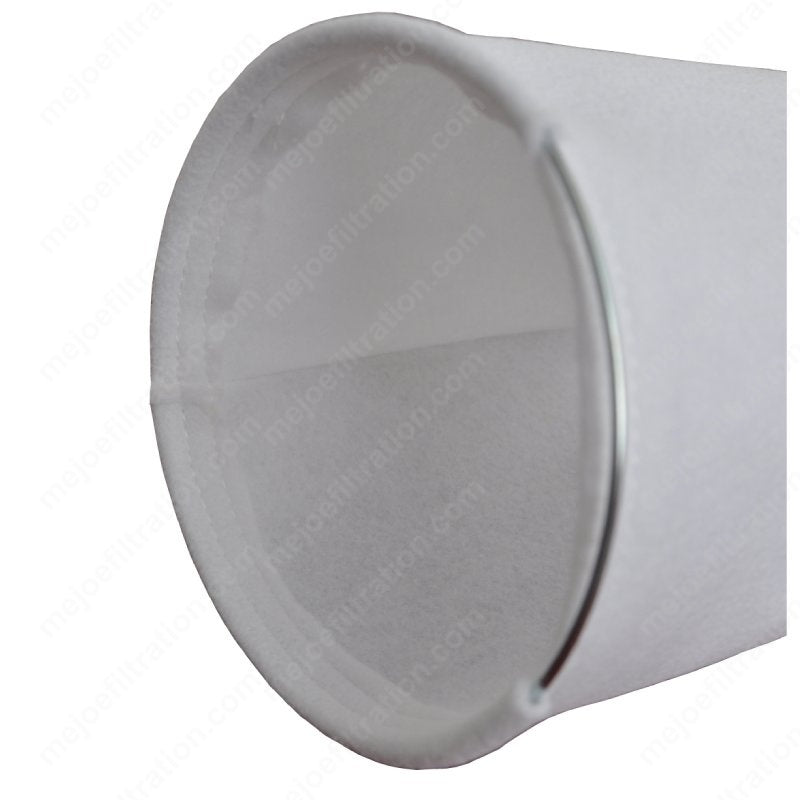

- S — Galvanized Steel Ring: Zinc-plated steel ring, sewn bag body
- A — 304 Stainless Steel Ring: 304 SS ring, sewn bag body, higher temperature and corrosion resistance
Ideal Applications
Chemical processing, electroplating, food & beverage, pharmaceuticals, paints & coatings, and water treatment.
Contact us for a custom quote. Specify bag size, ring type, and micron rating.
