Single Bag Filter Housing – Side-in Entry
  • Single Bag Filter Housing – Side-in Entry
  • Single Bag Filter Housing – Side-in Entry
Single Bag Filter Housing – Side-in Entry

Single Bag Filter Housing – Side-in Entry

Size
Material

Overview

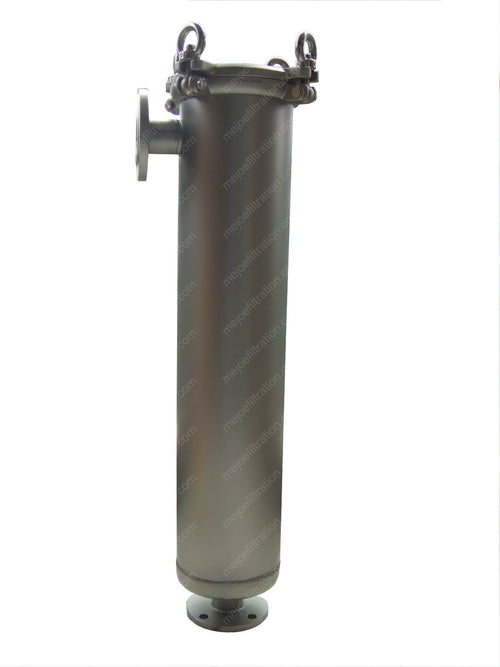

MejoeFilter Side-in Entry Single Bag Filter Housing is engineered for industrial liquid filtration applications where horizontal pipe connections are preferred. The side-in configuration allows seamless integration into existing pipeline layouts, making it an ideal choice for retrofitting or space-constrained installations. Available in No.1 and No.2 sizes with flexible configuration options to suit your process requirements.

Key Design Features

  • Side-in horizontal flow path — fluid enters from the side, enabling direct inline pipeline integration without vertical pipe modifications
  • Space-efficient installation — compact design suits installations with limited vertical clearance

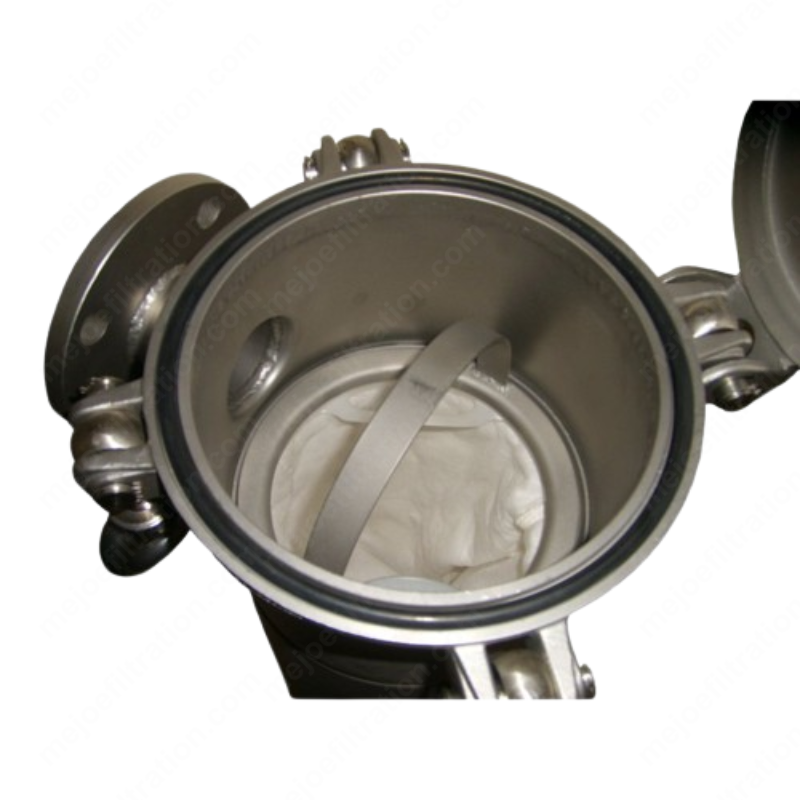

  • Robust sealing design — precision-engineered sealing surfaces ensure consistent, leak-free performance under continuous operation
  • Flexible connection options — supports flange, threaded, and tri-clamp connections to match existing pipework

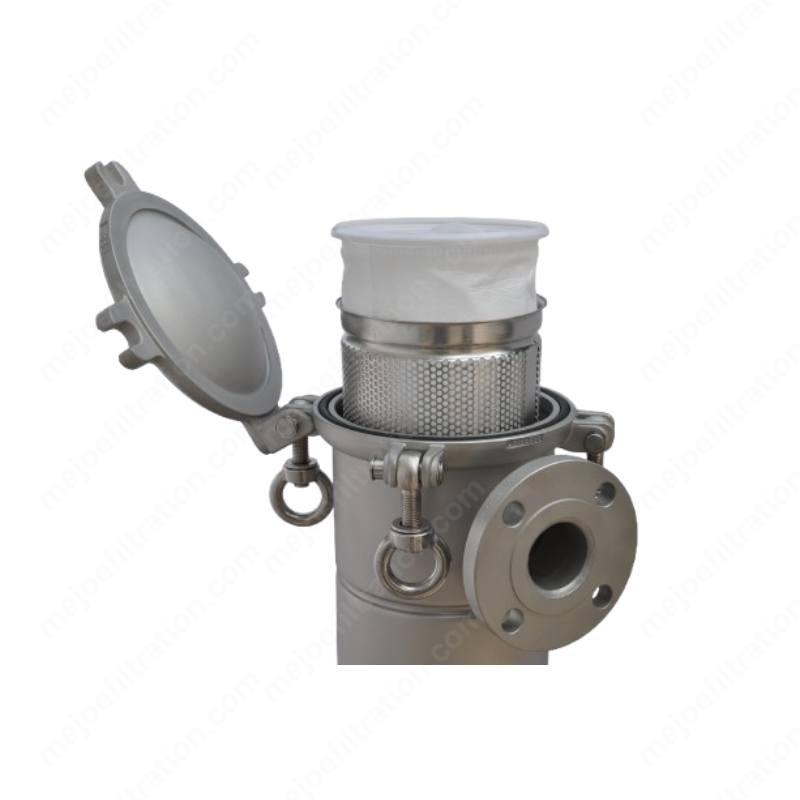

  • Easy bag replacement — top-open access allows quick filter bag changes with minimal downtime

Specifications

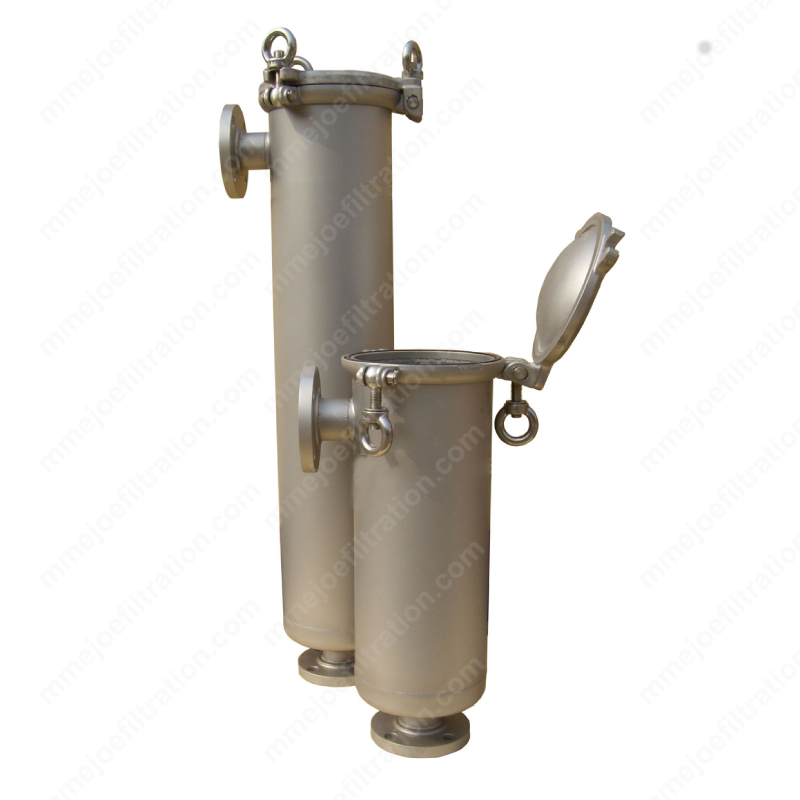

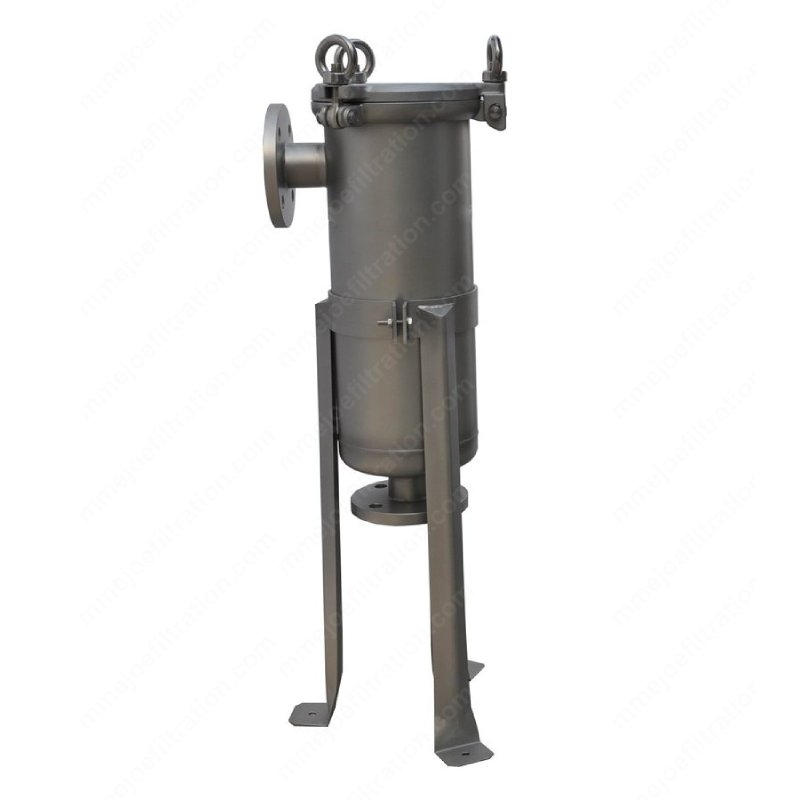

  • Available Sizes: No.1 / No.2
  • Material: 304 Stainless Steel / 316 Stainless Steel
  • Inlet/Outlet Configuration: Side-in / Bottom-out
  • Connection Type: Flange (standard DN50 (2"), other sizes available) / Threaded / Tri-clamp — please specify when inquiring
  • Working Pressure: 6–10 bar (87–145 psi)
  • Working Temperature: Up to 90°C (PP filter bag) / Up to 130°C (Polyester filter bag)
  • Construction: Robust and durable, suitable for demanding industrial environments
  • Surface Finish: Standard sandblast finish; mirror polishing available upon request
  • Standard Seal: NBR (Nitrile Rubber)

Optional Seal Materials

  • NBR – standard, suitable for water, oils, and mild chemicals
  • EPDM – suitable for hot water, steam, and mild acids/alkalis
  • Viton (FKM) – suitable for oils, fuels, and aggressive chemicals
  • PTFE – suitable for highly corrosive media
  • FEP/Viton – suitable for extreme chemical environments

Please specify your required connection type, flange size, and seal material when submitting an inquiry.

Applications

  • Chemical processing
  • Water treatment
  • Food & beverage
  • Pharmaceutical
  • Industrial manufacturing

Why Choose MejoeFilter?

  • Precision-machined stainless steel construction
  • Highly customizable — connection type, flange size, seal material all configurable
  • Easy bag replacement for minimal downtime
  • Competitive pricing — contact us for a quote
