Swing Arm Multi-Bag Filter Housing
Swing Arm Multi-Bag Filter Housing
The MejoeFilter Swing Arm Multi-Bag Filter Housing is a cost-effective solution for high-flow industrial liquid filtration. Designed for durability and reliability, the bolted lid closure provides a robust, leak-free seal — ideal for applications where bag changes are less frequent and long-term sealing integrity is the priority.
How It Works

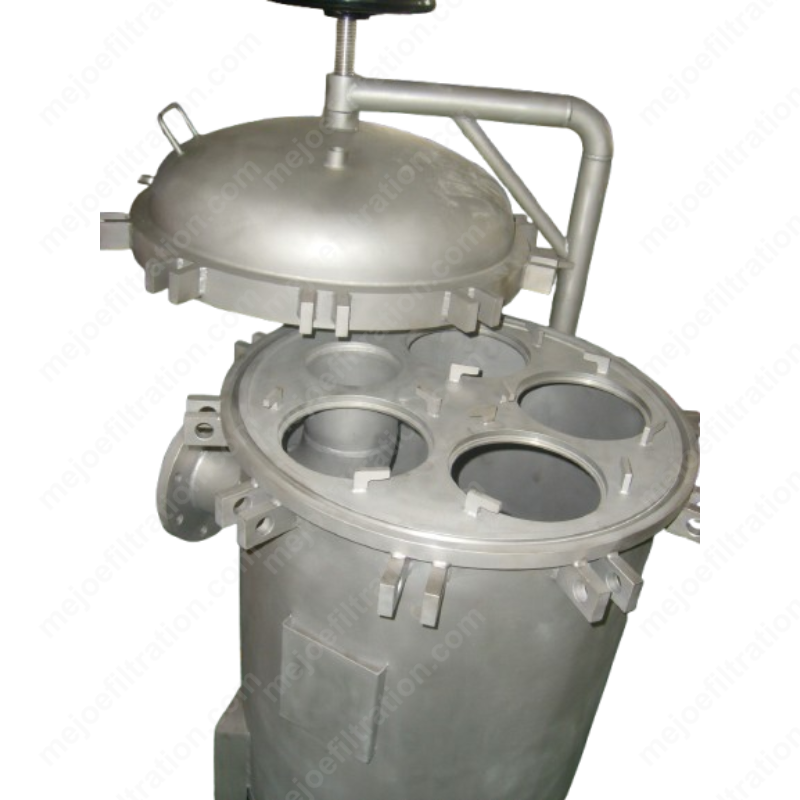

To open: remove the lid bolts one by one, then turn the top handwheel to lift the lid, and swing the arm to rotate the lid clear of the vessel for full bag access.
Key Features

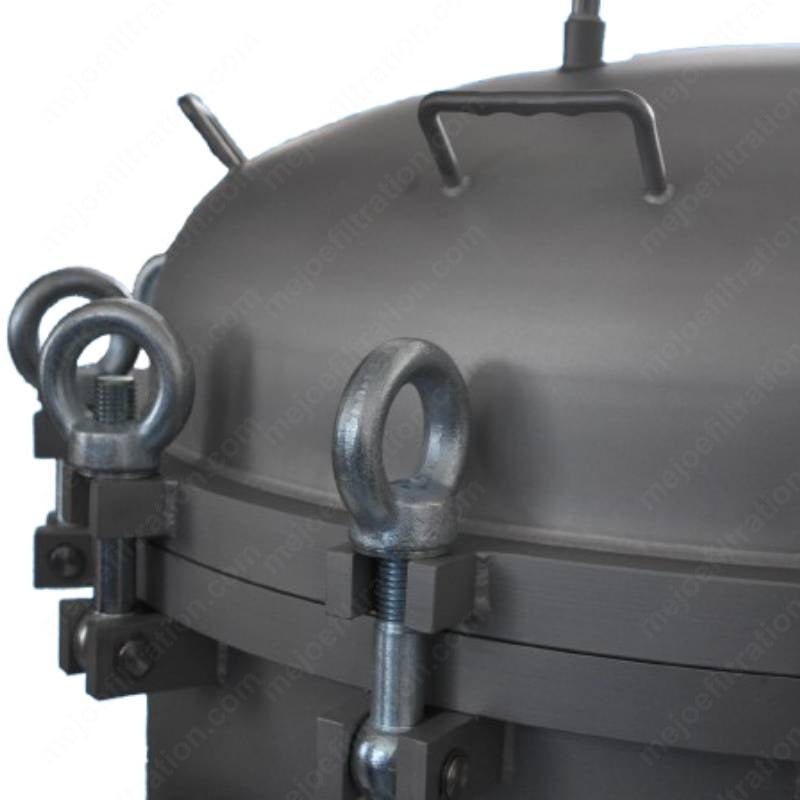

- Bolted Lid Closure — Robust multi-bolt sealing for reliable, leak-free operation

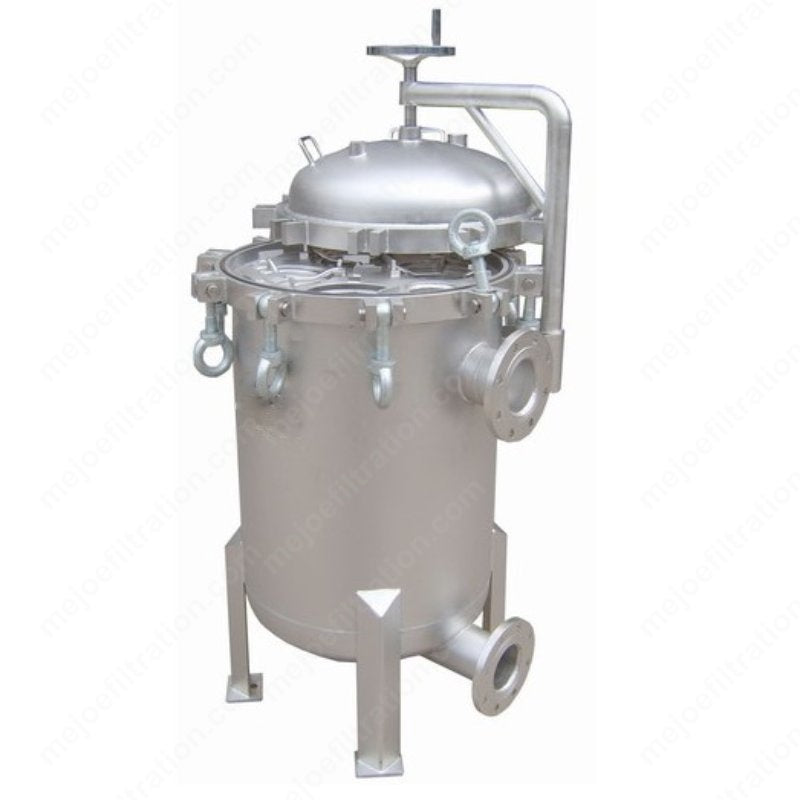

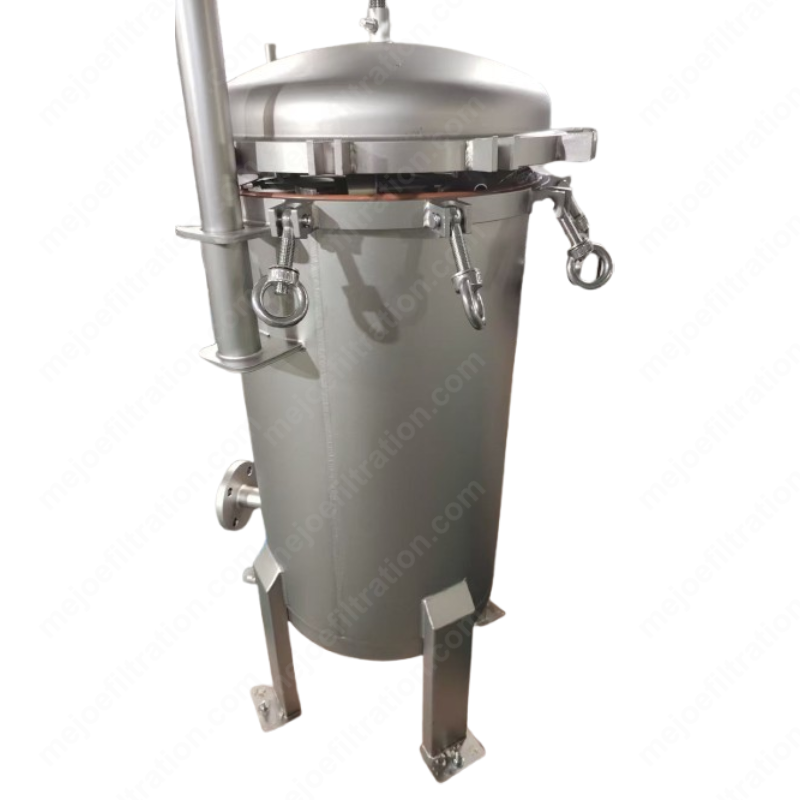

- Swing Arm Lid Design — Lid lifts via handwheel and rotates clear of the vessel for unobstructed bag access

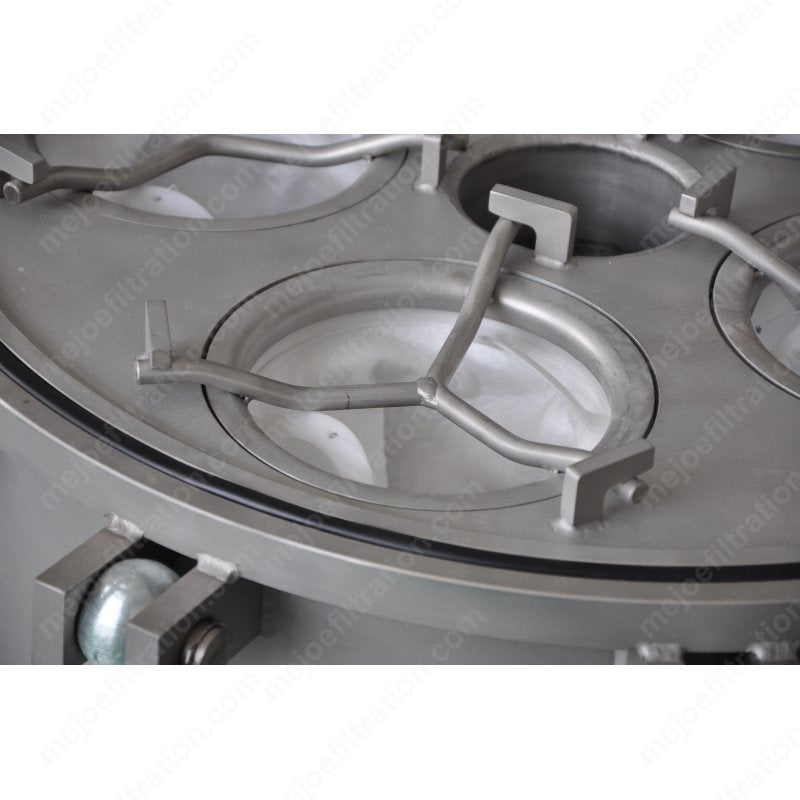

- 3-Point Bag Compression — Ensures superior filter bag sealing and prevents bypass leakage
- Cost-Effective — Economical alternative to quick-open designs; ideal for lower bag-change frequency applications
- High-Flow Capacity — Supports 2 to 14 filter bags for flows up to 560 m³/h (2,464 GPM)

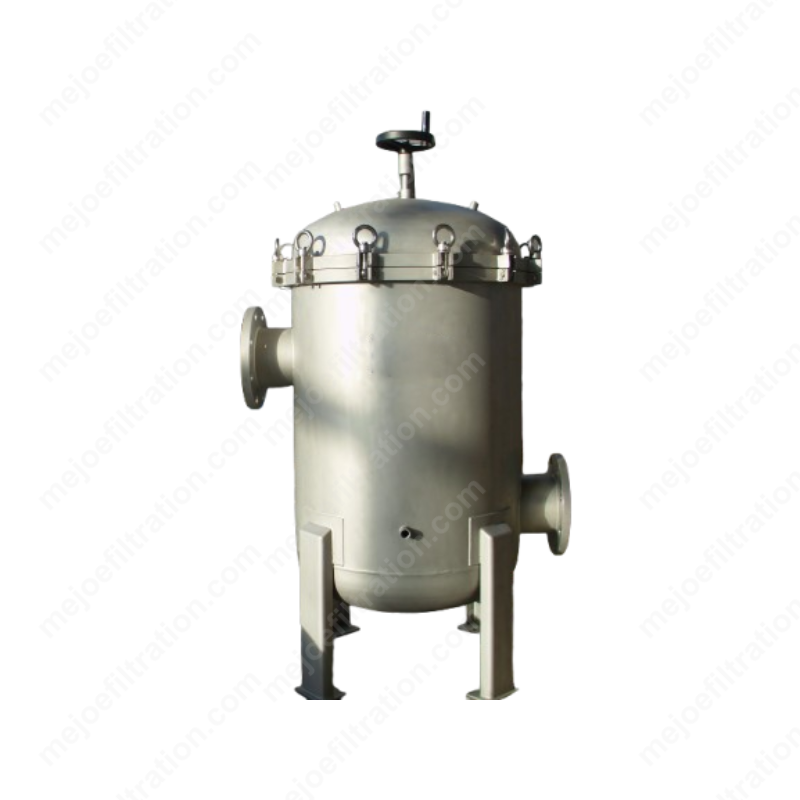

- Side Inlet / Bottom Outlet — Flanged connections available in ANSI, DIN, JIS, and GB standards

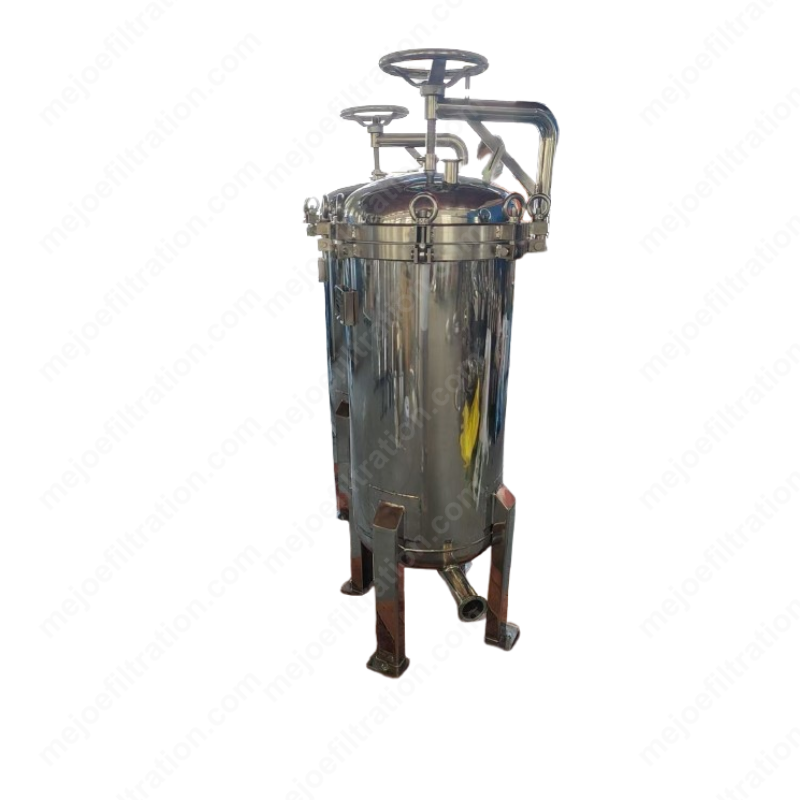

- 304 or 316L Stainless Steel — Sandblasted finish as standard; polished finish available on request
Specifications
| Parameter | Value |
|---|---|
| Filter Bag Size | Size #2 |
| Max. Operating Pressure | 10 bar (145 psi) |
| Max. Operating Temperature | 130°C (266°F) |
| Closure Type | Bolted Lid with Swing Arm and Handwheel Lift |
| Vent Port | BSP 1/4" |
| Drain Port | Optional (upon request) |
| Housing Material | 304 SS (standard) / 316L SS (optional) |
| Sealing Material | NBR (standard); EPDM / FKM / others available |
| Surface Finish | Sandblasted (standard); Mirror / Brushed Polish (optional) |
| Filtration Accuracy | 1 – 800 μm |
| Flange Standard | ANSI / DIN / JIS / GB (specify on inquiry) |
Flow Rate & Connection Reference
| Model | Bag Qty | Max. Flow Rate | Standard Inlet/Outlet |
|---|---|---|---|
| MTMF-xx202-065G | 2 bags | 80 m³/h (352 GPM) | DN65 / 2.5" |
| MTMF-xx302-065G | 3 bags | 120 m³/h (528 GPM) | DN65 / 2.5" |
| MTMF-xx402-080G | 4 bags | 160 m³/h (704 GPM) | DN80 / 3" |
| MTMF-xx502-100G | 5 bags | 200 m³/h (880 GPM) | DN100 / 4" |
xx = B (304 SS) or A (316L SS). Other bag quantities and flange sizes available upon request.
Ideal Applications
Cost-sensitive industrial liquid filtration including chemical processing, food & beverage, pharmaceuticals, paints & coatings, and water treatment — where bag changes are infrequent and sealing reliability is paramount.
Contact us for a custom quote. Specify bag quantity, flange size, flange standard, material, and surface finish.
