Single Bag Filter Housing – Top-in Entry

Overview

MejoeFilter Top-in Entry Single Bag Filter Housing features a one-piece cast top cover for superior structural integrity. The top-in configuration delivers optimal flow distribution and reliable sealing performance, making it an ideal choice for heavy-duty industrial liquid filtration. Available in No.1 and No.2 sizes with flexible configuration options to suit your process requirements.

Key Design Features

• One-piece cast top cover — integrated casting eliminates welded joints, maximizing pressure resistance and structural strength
• Top-in vertical flow path — fluid enters from the top for optimal bag loading and even pressure distribution across the filter media

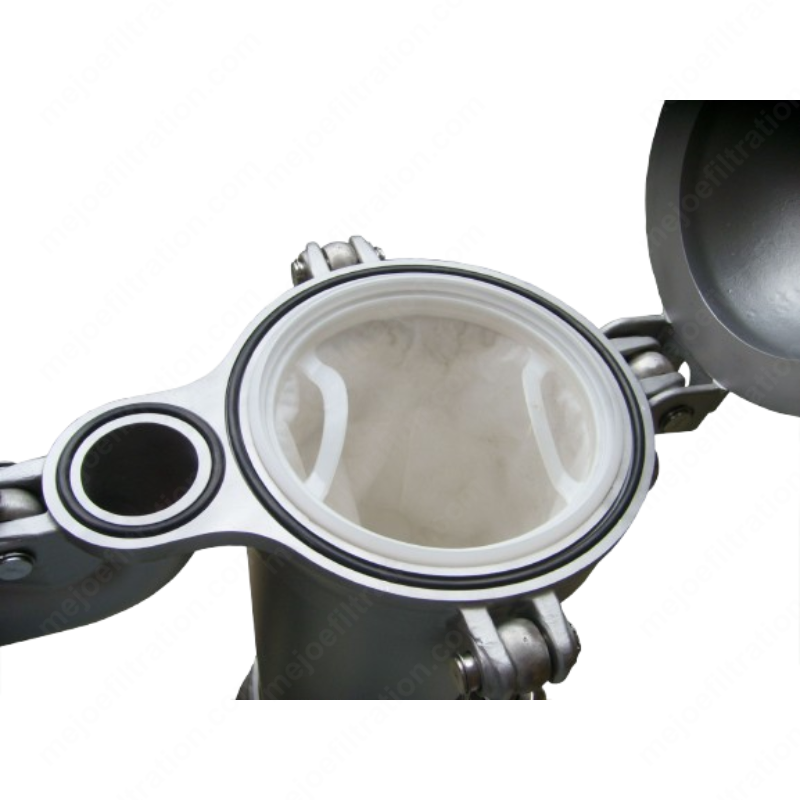

• Robust sealing design — precision-engineered sealing surfaces ensure consistent, leak-free performance under continuous operation
• Superior pressure resistance — one-piece cast construction handles demanding operations up to 10 bar

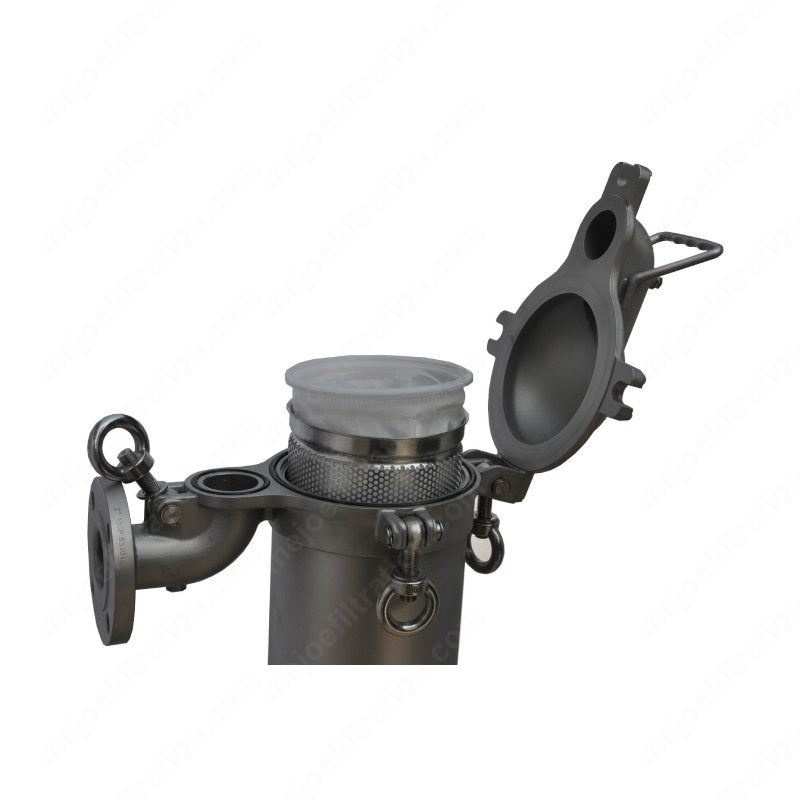

• Easy bag replacement — top-open design allows quick access without disconnecting pipework, minimizing downtime

Specifications

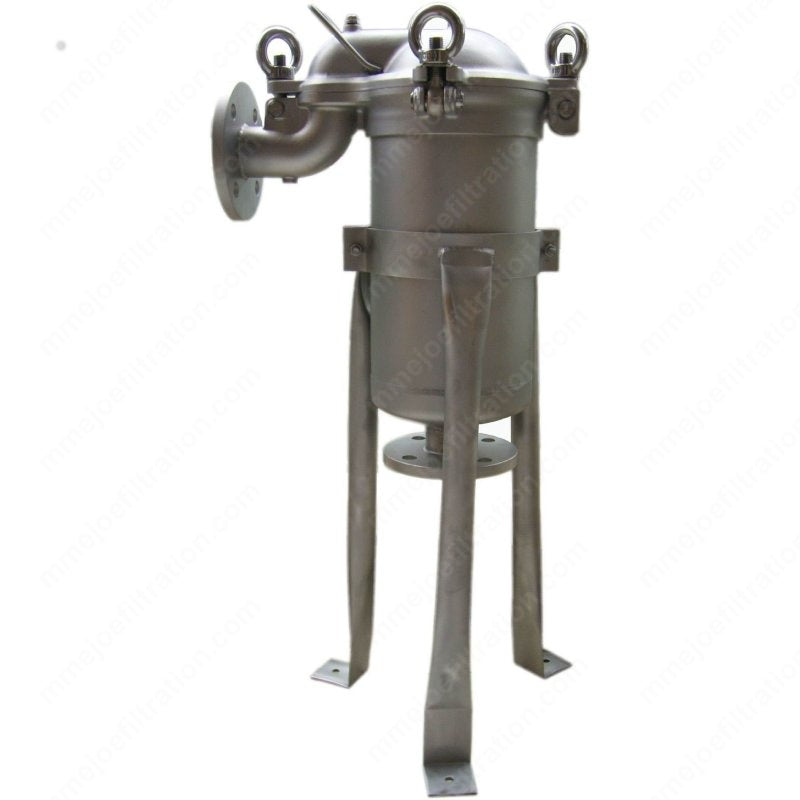

• Available Sizes: No.1 / No.2

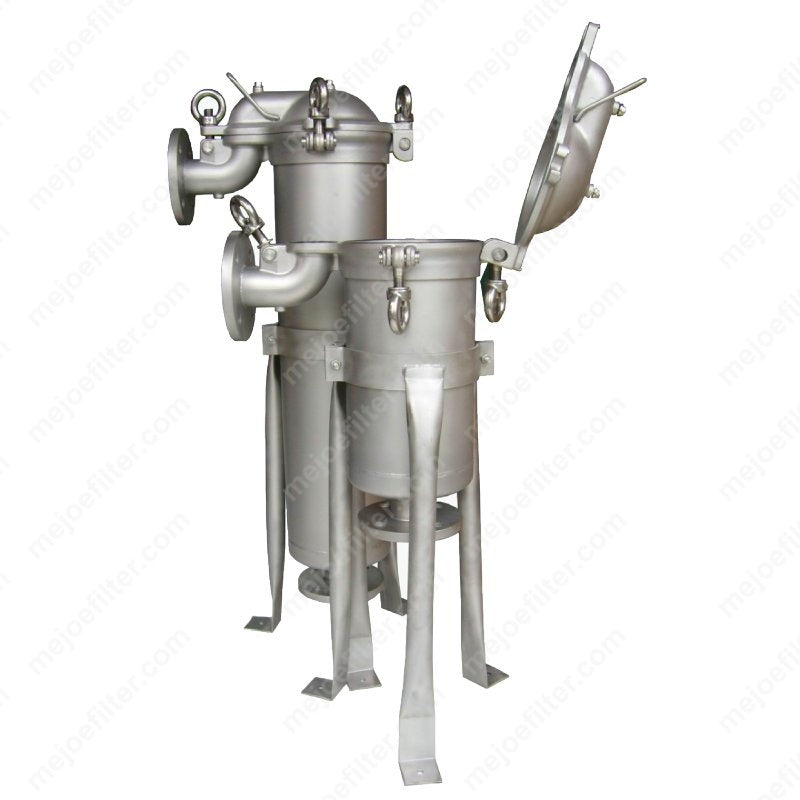

• Material: 304 Stainless Steel / 316L Stainless Steel
• Inlet/Outlet Configuration: Top-in / Bottom-out

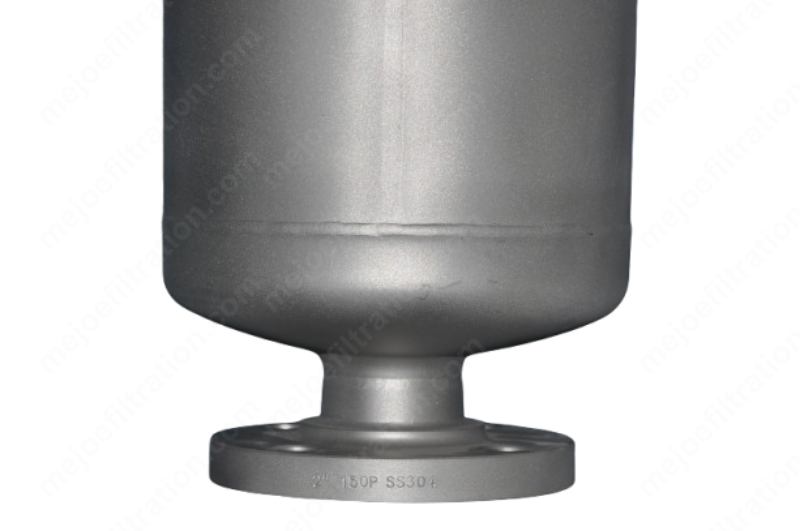

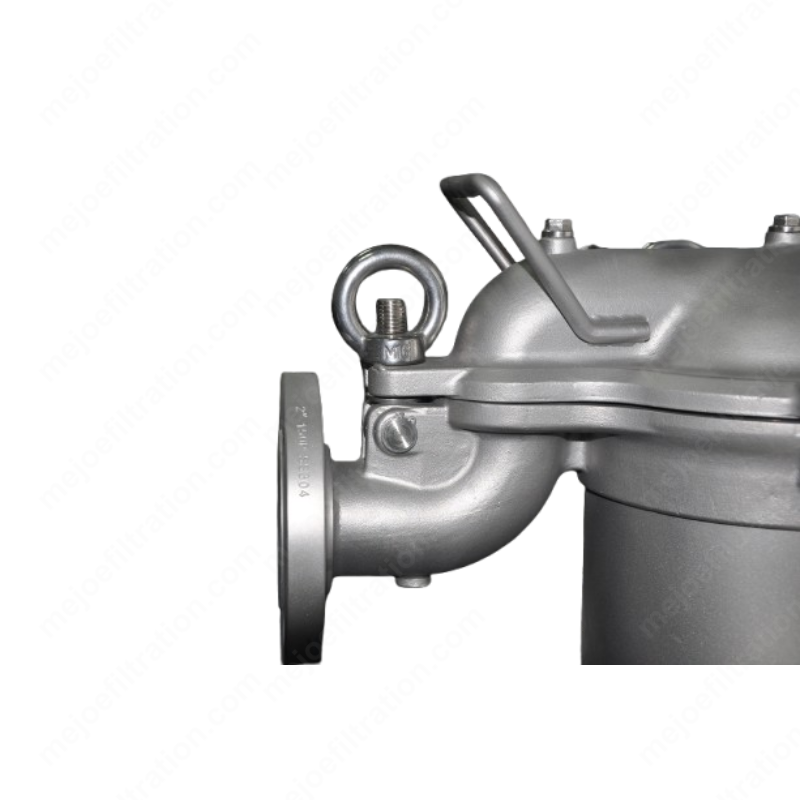

• Connection Type: Flange (standard DN50 (2"), other sizes available) / Threaded / Tri-clamp — please specify when inquiring
• Working Pressure: 6–10 bar (87–145 psi)
• Working Temperature: Up to 90°C (PP filter bag) / Up to 130°C (Polyester filter bag)
• Construction: One-piece cast top cover, robust and durable, suitable for demanding industrial environments
• Surface Finish: Standard sandblast finish; mirror polishing available upon request
• Standard Seal: NBR (Nitrile Rubber)

Optional Seal Materials

• NBR – standard, suitable for water, oils, and mild chemicals
• EPDM – suitable for hot water, steam, and mild acids/alkalis
• Viton (FKM) – suitable for oils, fuels, and aggressive chemicals
• PTFE – suitable for highly corrosive media
• FEP/Viton – suitable for extreme chemical environments

Please specify your required connection type, flange size, and seal material when submitting an inquiry.

Applications

• Chemical processing
• Water treatment
• Food & beverage
• Pharmaceutical
• Industrial manufacturing

Why Choose MejoeFilter?

• Precision-machined stainless steel construction with one-piece cast top cover
• Highly customizable — connection type, flange size, seal material all configurable
• Easy bag replacement for minimal downtime
• Competitive pricing — contact us for a quote
