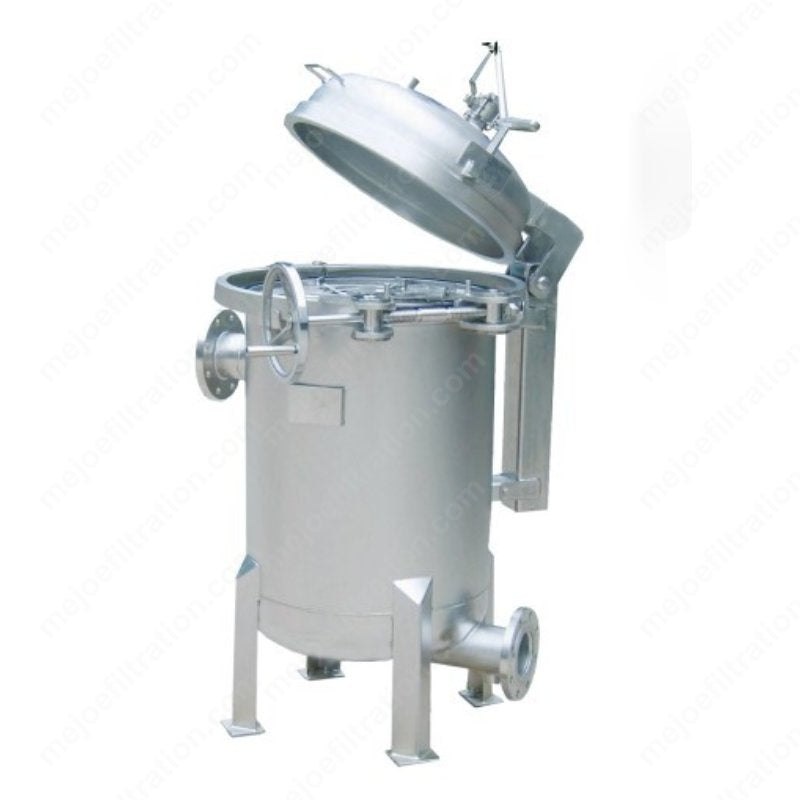

V-Band Clamp Quick-Open Multi-Bag Filter Housing
V-Band Clamp Quick-Open Multi-Bag Filter Housing
Designed for high-flow processes and frequent bag changes, the MejoeFilter V-Band Clamp Quick-Open Multi-Bag Filter Housing combines speed, safety, and simplicity in one robust stainless steel unit. One complete open-and-close cycle takes under 30 seconds — keeping your operation running at peak productivity.
Key Features

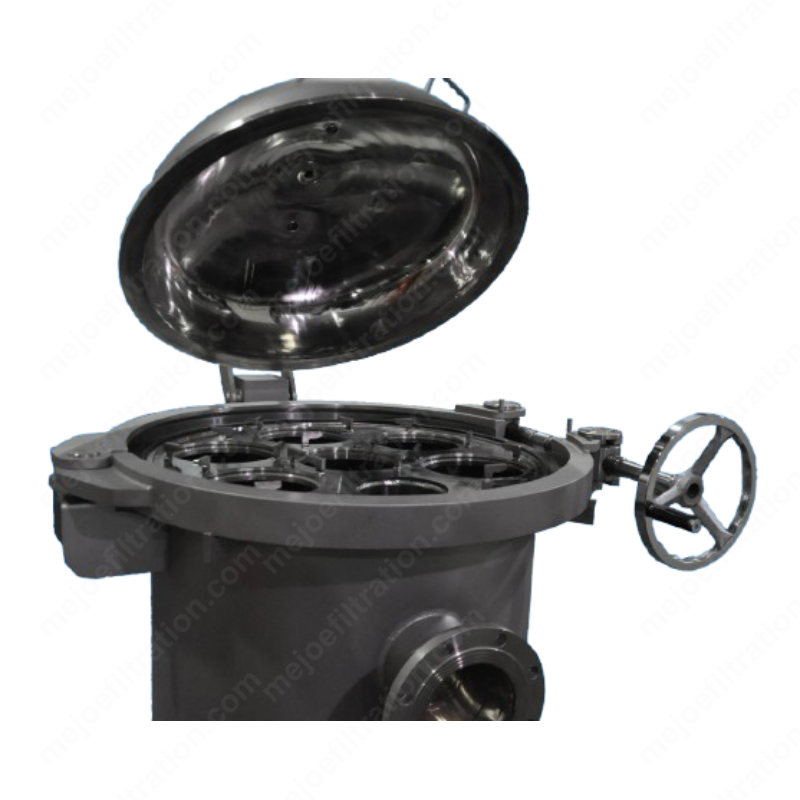

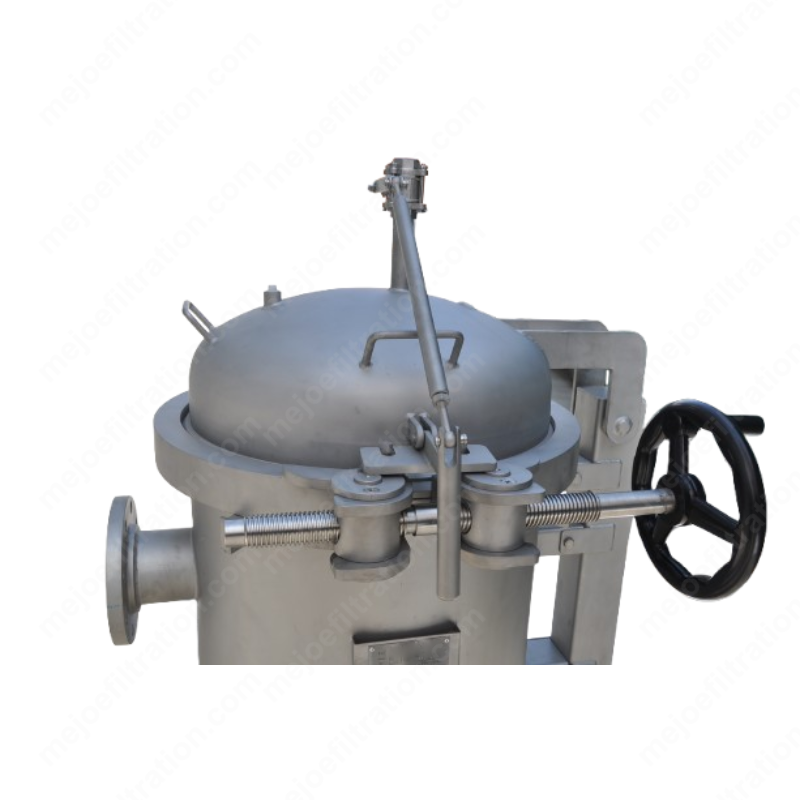

- Under 30-Second Open/Close Cycle — Handwheel-operated V-band clamp for fast, tool-free lid release and locking

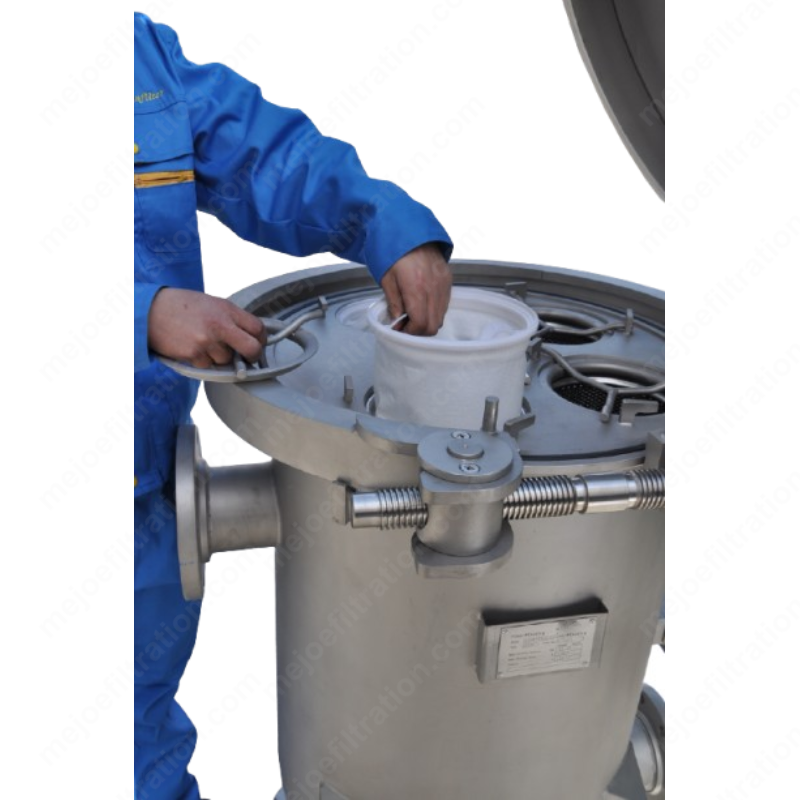

- Fast, Safe & Simple — Effortless bag replacement for operators at any skill level
- High Productivity — Minimizes downtime during bag change intervals

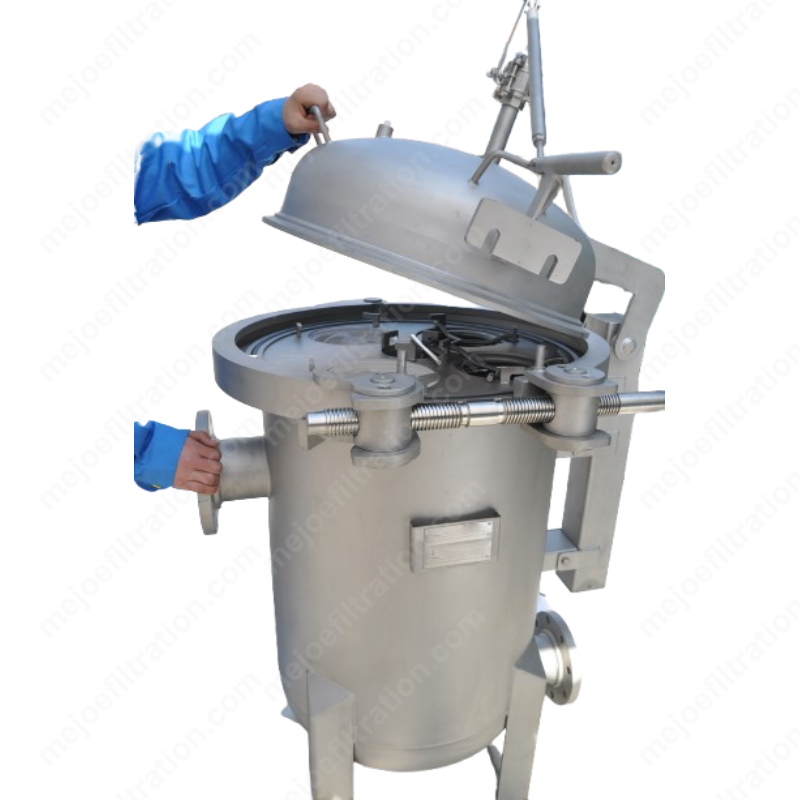

- 105° Hinge with Any-Angle Lock — Lid stays open at any position for safe, hands-free bag access
- Side Inlet / Bottom Outlet — Flanged connections available in ANSI, DIN, JIS, and GB standards
- 304 or 316L Stainless Steel — Sandblasted finish as standard; polished finish available on request
Specifications
| Parameter | Value |
|---|---|
| Filter Bag Size | Size #2 |
| Max. Operating Pressure | 10 bar (145 psi) |
| Max. Operating Temperature | 130°C (266°F) |
| Closure Type | V-Band Clamp with Handwheel Operation |
| Lid Opening Angle | 105° max, locks at any angle |
| Vent Port | BSP 1/4" |
| Drain Port | Optional (upon request) |
| Housing Material | 304 SS (standard) / 316L SS (optional) |
| Sealing Material | NBR (standard); EPDM / FKM / others available |
| Surface Finish | Sandblasted (standard); Mirror / Brushed Polish (optional) |
| Filtration Accuracy | 1 – 800 μm |
| Flange Standard | ANSI / DIN / JIS / GB (specify on inquiry) |
Flow Rate & Connection Reference
| Model | Bag Qty | Max. Flow Rate | Standard Inlet/Outlet |
|---|---|---|---|
| MVMF-xx202-065G | 2 bags | 80 m³/h (352 GPM) | DN65 / 2.5" |
| MVMF-xx302-065G | 3 bags | 120 m³/h (528 GPM) | DN65 / 2.5" |

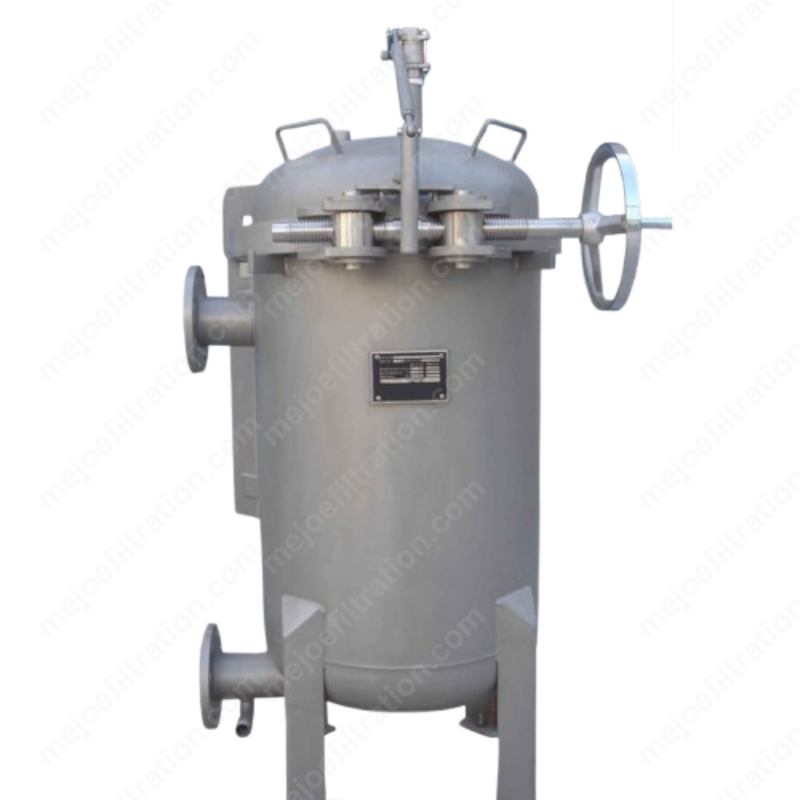

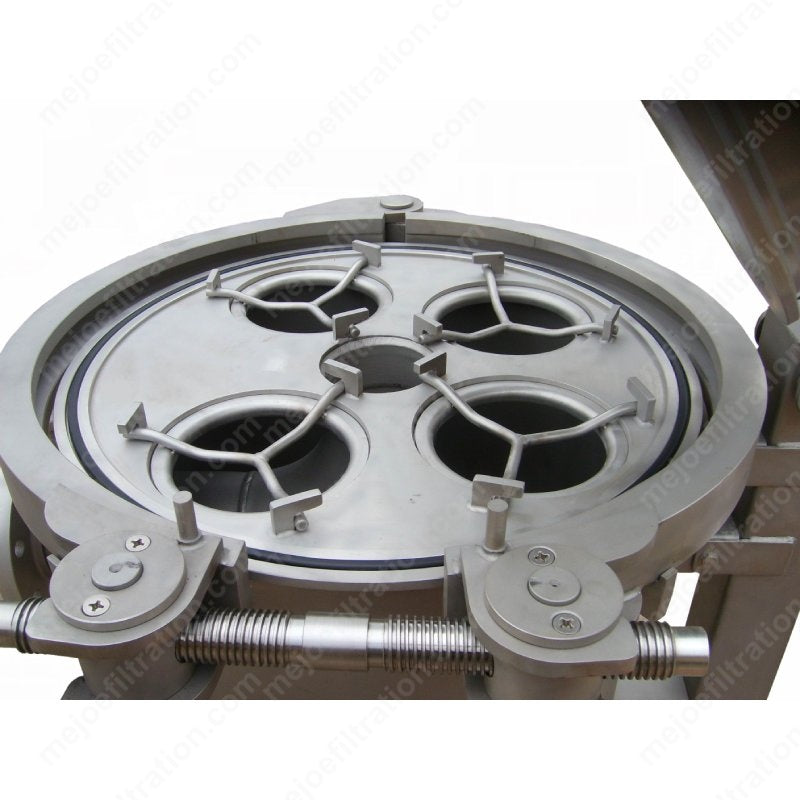

| MVMF-xx402-080G | 4 bags | 160 m³/h (704 GPM) | DN80 / 3" |
| MVMF-xx502-100G | 5 bags | 200 m³/h (880 GPM) | DN100 / 4" |
xx = B (304 SS) or A (316L SS). Other bag quantities and flange sizes available upon request.
Ideal Applications
High-flow and frequent bag-change processes including chemical processing, food & beverage, pharmaceuticals, paints & coatings, and industrial liquid filtration.
Contact us for a custom quote. Specify bag quantity, flange size, flange standard, material, and surface finish.
